We modified a $40 bathroom scale - leveraging its sensors and swapping out its electronics for ours, to power the ballistocardiograph

Ballisto-cardiograph

Ballistocardiograph: noun "an instrument for recording the movements of the body caused by ejection of blood from the heart at each beat."

Thinking this was extremely cool - and could have implications for non-invasive health care, I teamed up with a friend and turned a bathroom scale into a BCG

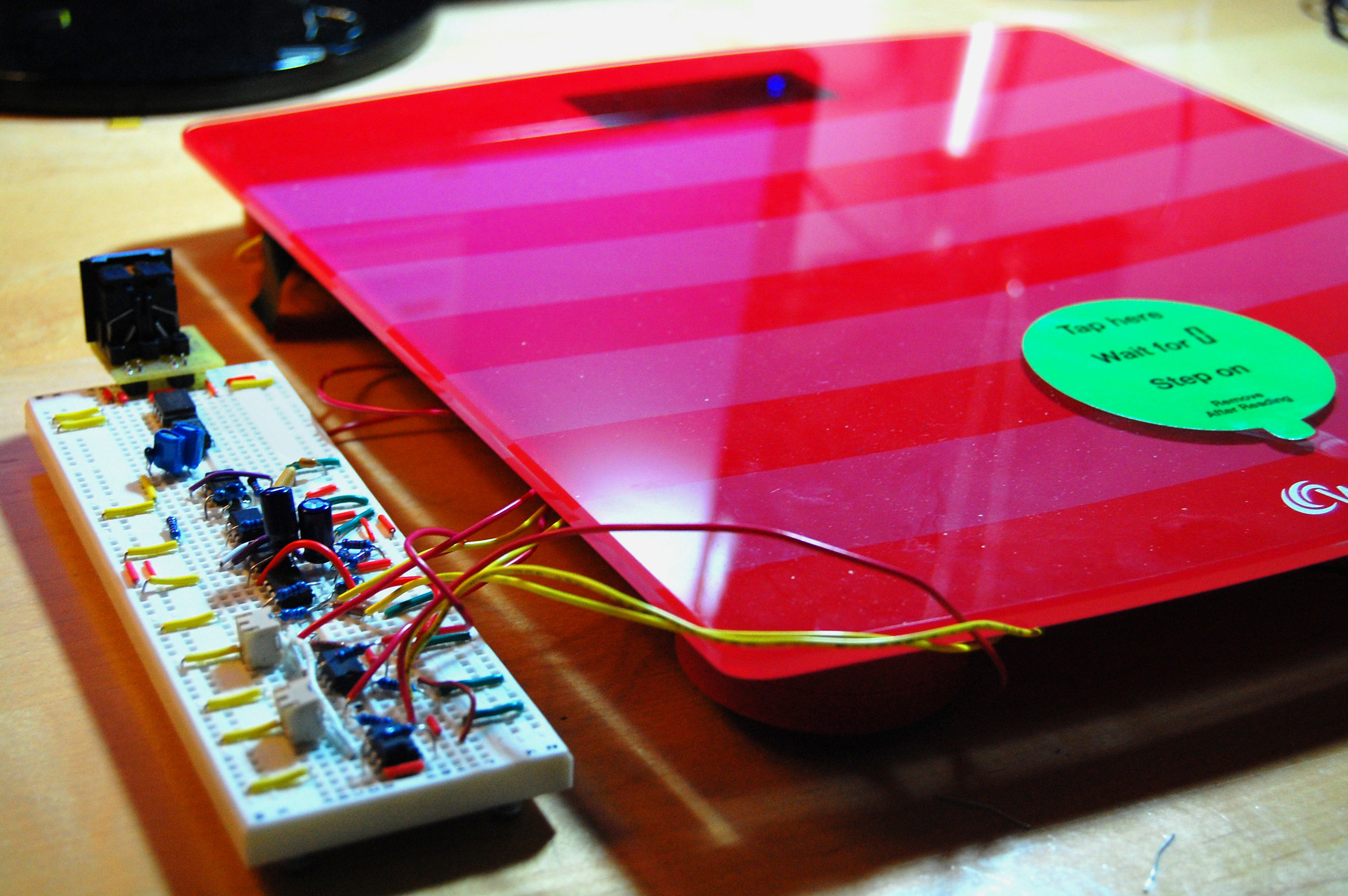

 We modified a $40 bathroom scale - leveraging its sensors and swapping out its electronics for ours, to power the ballistocardiograph

We modified a $40 bathroom scale - leveraging its sensors and swapping out its electronics for ours, to power the ballistocardiograph

 I'm not going to lie, this is one of my personal favorites. You can stand on this scale, wait a minute, and see your heartbeat in a near-equivalent resolution to a $1000+ EKG machine - but for ~$40.

I'm not going to lie, this is one of my personal favorites. You can stand on this scale, wait a minute, and see your heartbeat in a near-equivalent resolution to a $1000+ EKG machine - but for ~$40.

 Here you can see that it is sensitive enough to detect the QRS & TUP heartbeat complexes - the same signals an EKG measures.

Here you can see that it is sensitive enough to detect the QRS & TUP heartbeat complexes - the same signals an EKG measures.
